C7M is an upgraded version of C5M, which is a 5MP face recognition camera with POE, can do better in multiple faces recognition in 10m distance, can do face capture and comparison from 3-5 faces at the same time at 10m upgraded to 10-15faces at 10m distance. We offer SDK API and custom firmware, can help customers integrate this camera to customers’ platform or software for different use. Can customize firmware and hardware. Sugeng rawuh kanggo takon.

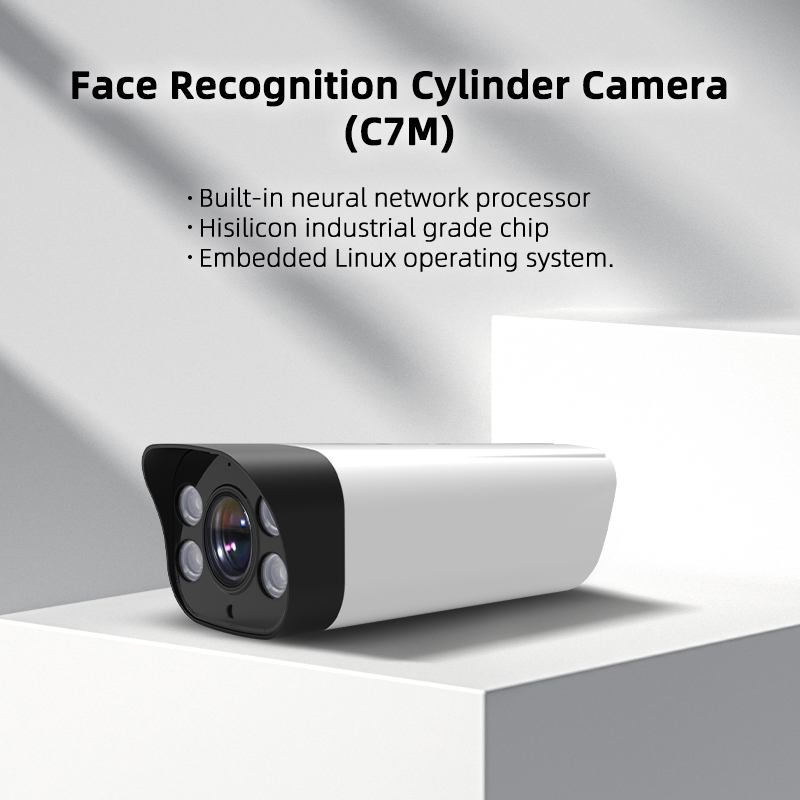

C7M is a face recognition cylinder camera based on deep learning for front end face recognition and comparison. Using HiSilicon high performance industrial-grade chips, built-in neural network computing processor and embedded Linux operating system, it can quickly retrieve and identify targets in the local face database, and realize the barrier access management function;
Support processing 50,000 local face database (can be upgraded to 200,000 face capacity), ultra-high comprehensive recognition accuracy. Its recognition speed is ≤80ms, and the recognition accuracy rate ≥99%; Can do 5-10 faces simutaneous recognition at up to 10m distance. Can view real time picture from the web brower or standalone software.
Spesifikasi
| Umum | |
| Prosesor |
RM Cortex-A7@ 1.2GHz
NPU: 2.0 TOP |
|
Minimum illumination
|
Color:0.1Lux/F1.4,B/W:0.05Lux/F1.4 |
| OS | Linux |
| Kapasitas pasuryan | 50,000(200K optional) |
| Kapasitas acara | 100,000 |
| Layar | |
| Ukuran | / |
| Jinis | / |
| kamera | |
| Resolution | 5M |
| HDR | nyokong |
| Pengurangan swara digital | nyokong |
| Pangenalan pasuryan | |
| Tingkat Pangenalan Pasuryan | 99% |
|
Recognition mode
|
Offline dynamic face recognition |
| Identification type | 1:N(multi-face) |
| Kacepetan pangenalan pasuryan | ≤80ms |
| Jarak pangenalan pasuryan | 0.5-10m |
| Multiple face recognition | 5-10 faces capture and comparison at the same time |
| Fungsi | |
|
AUDIO/VIDEO ENCODING |
H.265/H.264/MJPEG |
| Integrasi&Development | nyokong |
|
Max Resolution |
2960*1664 |
| Rekaman Video & output | nyokong |
| Njupuk foto output | nyokong |
| Fungsi jaringan | |
| Protokol jaringan |
TCP/IP,HTTP, HTTPS,DNS,NTP, websocket, MQTT, ONVIF(port: 8080)
|
| Protokol antarmuka | ONVIF, RTSP,SDK |
| Fungsi umum | Detak jantung, pangayoman sandi, NTP wektu |
| Antarmuka | |
| Antarmuka jaringan | RJ45 10m Kab / 100M network adaptive ethernet |
| WiFi | Opsional |
| Sinyal relay | / |
| RS485 | nyokong |
| Wiegand | / |
| USB | / |
| liyane | |
| Power Supply | DC 12V 2A |
| Suhu kerja | -20 ℃ -70 ℃ |
| POE | nyokong |
| Kelembapan kerja | 0%-90% (no condensation) |
| Ingress Protection | IP66 |
| konsumsi daya (maksimal) | ≤8W |
| Lingkungan aplikasi | Indoor or outdoor |
| Aksesoris | Main device(including tail cable),sumber daya,bracket,kertu babar pisan,manual pangguna,expansion screw, Kunci Allen |
| Paket | |
| Ukuran | 270mm*160mm*140mm |
| Bobot | 650G |
| Garansi | 1 taun |
| Sertifikasi | CE FCC |
1. Kepiye carane entuk rega?
– Biasane kita kutipan 24 jam sawise kita priksa (kajaba akhir minggu lan liburan) Yen sampeyan cepet-cepet entuk rega, Kirimake email utawa hubungi kita kanthi cara liya supaya bisa menehi sampeyan kutipan.
2. Bisa aku tuku conto?
-ya wis. Moq kita 1 PCS. Monggo hubungi kita.
3. Apa wektu timbal sampeyan?
– Iku gumantung saka jumlahe pesenan lan musim sing sampeyan pasrah. Biasane kita bisa ngirim ing 3-15 dina kanggo jumlah cilik, lan babagan 15-30 dina kanggo jumlah gedhe.
4. Apa istilah pembayaran sampeyan?
– We accept L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal. 100% Pembayaran kanggo conto lan 30% Deposit lan 70% balance before delivery for bulk orders.
5. Apa cara pengiriman?
– Bisa dikirim dening segara, dening udhara, utawa kanthi ekspres (EMS, UPS, DHL, TNT, FedEx lsp). Please confirm with us before placing orders.6. Apa kabijakan babar pisan sampeyan?- Kita nyedhiyakake 1 year warranty.7.Can you accept OEM order?-ya wis, we can provide customers complete solutions and OEM.8. Kepiye sampeyan nggawe bisnis jangka panjang lan hubungan sing apik?
– We keep good quality and competitive price to ensure our customers’ benefits. Salajengipun, Kita ngurmati saben pelanggan minangka kanca lan kita kanthi tulus nindakake bisnis lan nggawe kanca karo dheweke, ora preduli saka ngendi.
